The moment I first laid eyes on a detailed flow diagram of a reverse osmosis (RO) water filtration system, I realized something critical: this isn’t just a schematic. It’s a narrative of precision—each arrow, valve, and membrane a deliberate choice shaped by fluid dynamics, material science, and years of trial. Unlike conventional filtration, where flow is managed through gravity or simple pressure, reverse osmosis demands reversibility. The diagram doesn’t just show water moving; it exposes the battle between osmotic pressure and applied force, a delicate equilibrium maintained under stress. This isn’t magic—it’s applied physics, visualized in a single, revealing blueprint.
At First Glance: The Simplicity That Hides Complexity

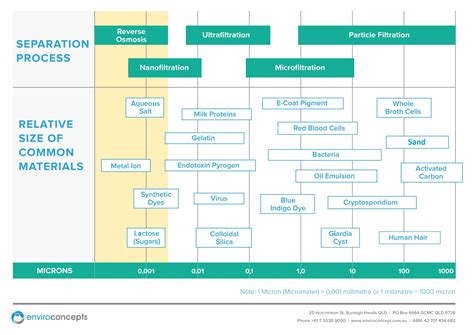

A flow diagram of an RO system looks deceptively simple. Water enters under pressure, flows through a semi-permeable membrane, and exits as purified water—while concentrated waste, or brine, is discarded. But stop and consider: this linear flow masks a cascade of microprocesses. The membrane, often overlooked, is the heart of the operation—its pore size, typically 0.0001 microns, filters out not just salts but viruses, heavy metals, and microplastics. The challenge? Maintaining consistent pressure across the membrane without fouling or scaling. The diagram implicitly reveals this tension—arrows indicating pressure differentials reveal how the system compensates for concentration polarization, a common bottleneck where solutes accumulate near the membrane surface, reducing efficiency.
Pressure Dynamics: The Unseen Engine
One of the most telling elements in the flow diagram is the pressure gradient. On the inlet side, pressures often exceed 800 psi—far above typical municipal input. This is not arbitrary. The diagram shows how energy recovery devices (ERDs) reclaim up to 90% of the waste pressure, turning a waste stream into a resource. Without this, operating costs soar, and environmental impact worsens. Yet, pressure isn’t the only variable. Flow rate must be balanced with residence time—if water moves too fast, contact with the membrane drops, reducing contaminant removal. The diagram’s flow paths, often depicted in layered cross-sections, illustrate how manufacturers optimize channel geometry to minimize dead zones where contaminants stagnate. This is where engineering meets intuition—every curve and junction is a compromise between maximum throughput and minimal risk.
Brine Management: The Forgotten Exit
What happens to the rejected water? The flow diagram ends there—but in reality, brine disposal is a silent crisis. The system’s discharge path, usually a secondary loop or direct discharge (where permitted), represents a critical environmental variable. In arid regions, even small volumes of concentrated wastewater strain local ecosystems. The diagram’s clarity here is deceptive: the brine outlet is often a single, narrow channel, emphasizing that this is not just a byproduct but a design liability. The real challenge isn’t just the brine volume—it’s the energy and cost of treatment, a factor rarely highlighted in consumer-facing marketing. This is where regulatory scrutiny intensifies, especially in water-stressed areas where RO systems scale rapidly.
Real-World Trade-offs: Efficiency vs. Risk
Operational data from municipal and industrial RO installations reveals a stark truth. A 2023 study in the Journal of Water Process Engineering found that systems with poorly optimized flow distribution suffer up to 30% lower recovery rates and higher energy intensity. The flow diagram, when paired with performance metrics, becomes a diagnostic tool—showing where pressure drops or flow imbalances correlate with reduced output. Yet, even the most advanced diagrams can’t fully capture variability: membrane degradation accelerates unpredictably, and feedwater quality fluctuates hourly. This uncertainty demands adaptive monitoring, not static blueprints. The best systems integrate real-time sensors feeding into control loops, dynamically adjusting pressure and flow—transforming the diagram from a static image into a living interface.
Reverse Osmosis in Perspective: Beyond the Filter Panel
What the flow diagram doesn’t always show is the broader lifecycle. From raw water sourcing to end-use, each stage influences design. In developing regions, portability and low maintenance dominate—short, modular flows with manual cleaning. In contrast, industrial facilities prioritize throughput and automation, often at the cost of energy and membrane longevity. The diagram, then, is both a technical artifact and a cultural lens—revealing how priorities shape engineering. It’s also a reminder that no filtration system exists in isolation. The water quality downstream, the community’s resilience, and the planet’s finite resources all hinge on how these flows are managed.
Conclusion: The Flow Diagram as a Key to Trust
To see a reverse osmosis flow diagram is to glimpse the soul of the system—not just its parts, but its purpose. It’s a map of constraints, compromises, and hidden costs. For journalists, policymakers, and consumers, decoding this visual language is essential. The diagram isn’t just about water purification—it’s about transparency, accountability, and the invisible engineering that keeps taps safe. In an era of growing water stress, understanding this flow is no longer optional. It’s a prerequisite for responsible innovation.
